| Click any photo for larger image. Coles Crane Catalouge
1975
|
||||||
) |
Its 1975 and Coles have been taken over by the Acrow Group for three years now. Coles were in need of investment and the production costs reducing. The lines have been slimed down, some plants have been sold off. The text shown below is on the first page of this leaflet and outlines the cranes now being made. |
|||||
|
THE COLES RANGE
Self propelled mobiles With capacities from five to 70 tons these highly efficient machines are working in factories, yards, poets and terminals throughout the world. Husky rough terrain cranes Specially designed for working on unmade ground, Hydra Husky cranes are mounted on four wheel drive, four wheel steer chassis offering the best in strength and manoeuvrability. Hydra Speed cranes These medium capacity general purpose cranes have excellent low-headroom characteristics and provide good outreach on the telescopic boom, plus excellent manoeuvrability through the front wheel steer, rear wheel drive chassis configuration. Diesel electric truck / truck tower cranes These machines which can work as conventional strut jib cranes or in tower configurations, are ideal for heavy duty lifting. They combine exceptional height of lift capability with a facility for fast inter site travel. Hydra truck cranes These telescopic boom cranes are capable of fast road travel, complying with the most stringent highway regulations, and they have excellent on site performance. They range in maximum lifting capacities from 10 to 100 tons. |
||||||
)
)
)
|
||||||
|
|
|
|
|

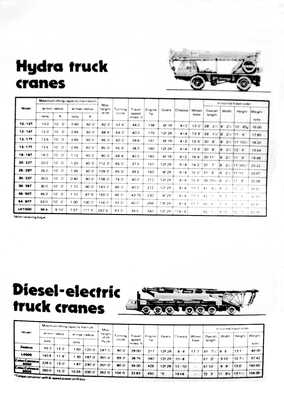

Hydra truck cranes model tons chaissis 10/12T 10 4x2 12/14T 12 4x4 13/17T 13.5 4x2 13/17T 13.5 4x4 16/18T 16 4x2 20/22T 20 6x4 25/28T 25 6X4 30/33T 30 8X4 30/35T 30 8X4 45/50T 45 8X4 54/60T 53 8X4 LH1000 98.4 14X8 Diesel electric cranes Zealous 55 8x4 L4000 140 10x8 Colossus 5000 226 12x10 Colossus 6000 250 14x8 |

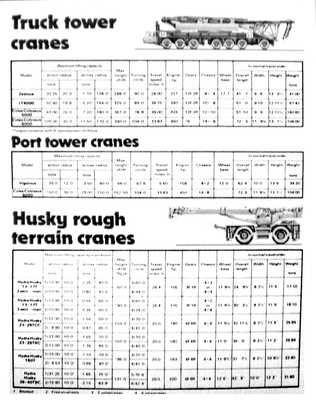

Truck Tower Cranes model tons chaissis Zealous 20.25 8x4 LT4000 50.4 10x8 Colossus 5000 63 12x10 Colossus 6000 105 14x8 Port Tower Cranes Vigorous 35 4x2 Colossus 6000 105 14x8 Husky Rough Terain Cranes Hydra Husky 13/17 2sec-man 13 4x2-4x4 13/17 3sec-man 13 4x2-4x4 23/28TCC 22 4x4 23/28TSC 22 4x4 150T 15 4x4 36/40TSC 25 4x4 |
|
|
|
|
|
|
|
) |

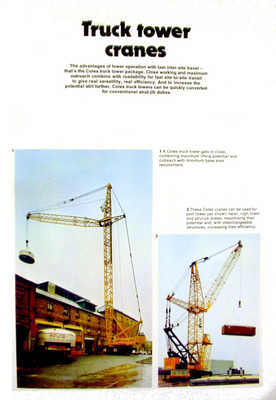

The remaining pages of this catalogue simply give publicity discriptions of the types:- Truck Tower Cranes The advantages of tower operation with fast inter-site travel that's the Coles truck package. Close working and maximum outreach combine with road ability for fast site-to-site transit to give real versatility, real efficiency. And to Increase the potential still further, Coles truck towers can be quickly converted for conventional strut duties. |
|||||
)
)
)
|
||||||
|

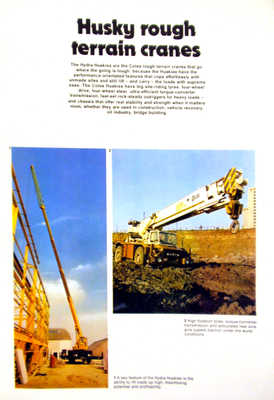

Husky Rough Terrain Cranes The Hydra Huskies are the Coles rough terrain cranes that go where the gong is tough because the Huskies have the performance orientated features that cope effortlessly with unmade sites and still lift - and carry - the loads with supreme ease. The Coles Huskies have big site riding tyres, four wheel drive, four wheel steer. ultra efficient torque converter transmission, fast set rock steady outriggers for heavy loads - and chassis that offer real stability and strength when it matters most, weather they are used in construction, vehicle recovery, oil industry or bridge building. Hydra Speedcranes Where there's a need for a conventionally sized, general purpose, telescopic boom crane there's no better answer than a Hydra Speedcrane. Front wheel-drive/rear-wheel-steer for superb manoeuvrability. road travail capability, exceptionally low headroom requirement, a unique compensated rope-reeving system, long outreach, robust construction and utter reliability all these and more make Speedcranes the answer to a wide range of general lifting problems. Self Propelled Mobile Cranes These are the work horses of the Coles range, in action round the clock all over the world in factories, depots, stores, timber yards, ports and terminals - anywhere that rugged and reliable lifting capability is required. Coles self propelled mobiles with a wide range of maximum lifting capacities, are available with strut and cantilever jibs and can be fitted with tongs, electro magnets, grabs and other specialist handling devices. |
||||||
|
