Victor Truck |
||||
| Model - Victor | Type - Lorry Strut | Lift weight - 10 ton | ||
| Date - 1965 | Power - Petrol eletric | Wheel Base - 4X2 & 6X4 | ||
Notes - Jibs 6.1/7.6/9.1m General Description. Truck mounted Petrol/Diesel -electric crane with 6x4 (early version 2x2) wheel drive and unlimited full circle slewing in either direction. The hoist, derrick and slew motions are energised by a variable speed generator driven by power take-off from the prime mover. Each motion is controlled by an interlocked pair of heavy duty reversing contractors operated by pilot switches in the driver's cab. Coles automatic control and protection is incorporated to safeguard the machine against abuse. Click on any picture for bigger image |
||||

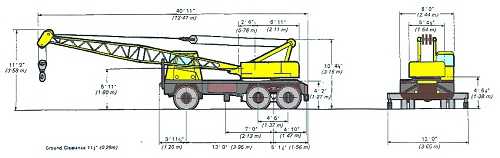

) 1.

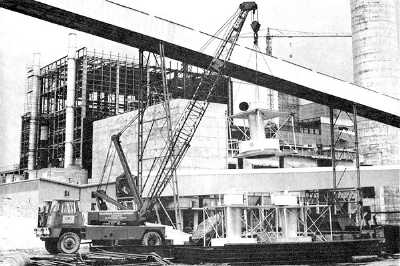

) 2.

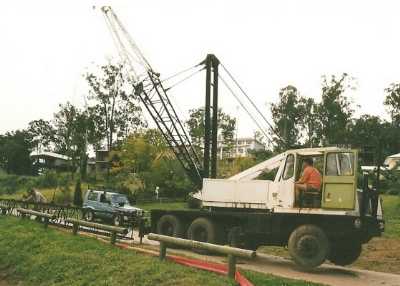

) 3.

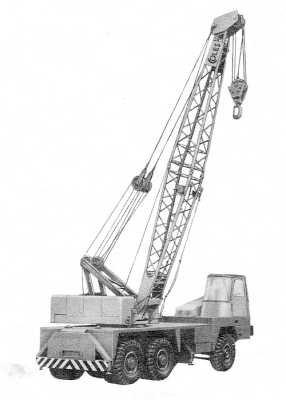

) 4.
){kind=small} 5.
|
||||
Thanks - 1.2. Neil Fraser : 4. Brent Stacey : 3.5. Peter Burwell |
||||
