Victor-C1 |
||||
| Model - Victor-C1 | Type - Lorry mounted cantlever | Lift weight - 10 ton | ||
| Date - 1965 |
Power - Petrol eletric |
Wheel Base - 4x2 |
||
|
Notes - Jib : 20' 0" (7m.) CRANE DATA. Motors and Generator specially designed. The variable speed generator 0-400 volts, and the variable voltage motors have maximum outputs of 15 hp. hoist, and 11 h.p. slew and derrick. Brakes : electro mechanical, fitted to hoist, derrick and slew motions. Limit Switches : automatically self-resetting, fitted to prevent over winding, over lowering. and over derricking. Radius Indicator : shows maximum loads at various radii. Slew Ring : large diameter double live ring of steel balls running in hardened races. Click on any picture for bigger image |
||||
-10T-4x2-1965-l-1.jpg','Coles Cranes')) 1.

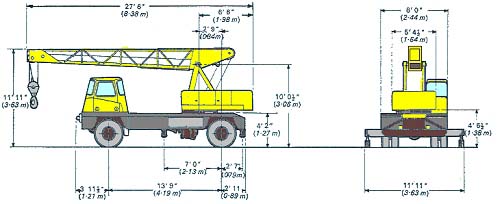

-10T-4x2-1965-l-2.jpg','Coles Cranes')) 2.
|
||||
Thanks - 1.2. Peter Burwell |
||||
