History of Coles Cranes of Sunderland and workshop models made at the works.

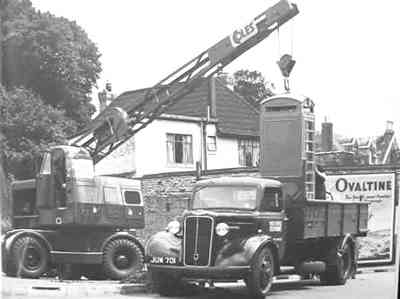

	Ulysses Mobile (C)
	Model - S 810	Type - Canterlever	Lift weight - 3 ton
	Date - 1949	Power - Petrol Eletric	Wheel Base - 4x2
	Notes - The prime-mover is a petrol engine developing 47 h.p. at 1800 r.p.m. which drives an alternator supplying power to electric motors. All four movements (hoisting, slewing, derricking and travelling) are independently electrically operated. All controls are operated from the cab and automatic overload prevention features are provided. The maximum loads which can be lifted are of the order of 3 tons but these and the outreach can be varied according to the type and length of jib fitted. The crane is fitted with steel lifting ropes and stabilizing jacks. Dimensions Length 13 ft. Width 7 ft. 6 in. Height 11 ft. 3 in. with jib horizontal. Weight 12 - 16 tons according to lifting capacity Travelling speed 6 m.p.h. (unladen) Click on any picture for bigger image
1. 2. 3.
