Speedcrane (5 ton) 1968 |
||||
Model - Mark II | Type - Industrial | Lift weight - 5 ton | ||
Date - 1968 | Power - Diesel Hydraulic | Wheel Base - 4x2 | ||

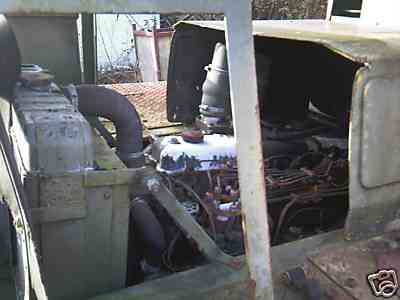

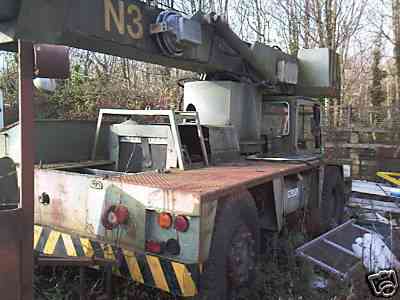

Notes - Two section boom. Having come up with a good design solution for the new Hydra Husky the design team went back to the Speed crane and replaced the whole slewing frame and old tower with the 'L' plate system used on the husky. Because there is less room now under what was the tower the engine has bee pushed back with the radiator sticking up at the rear. The deck became just a platform and the side guards removed giving better access to the wheels. Click on any picture for bigger image |
||||

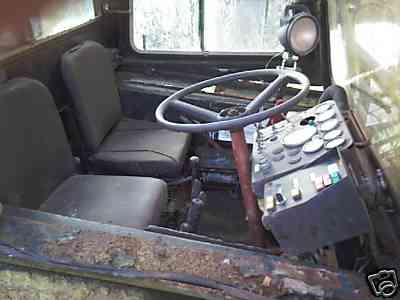

1.
2.

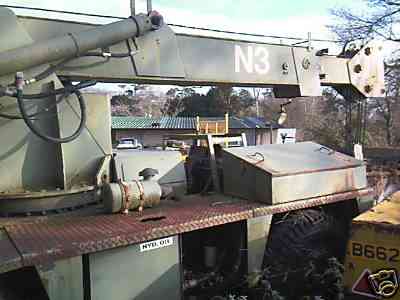

3.

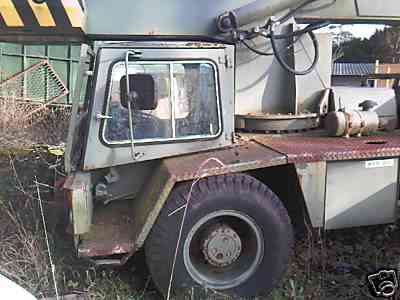

4. 5. 6. |
||||
